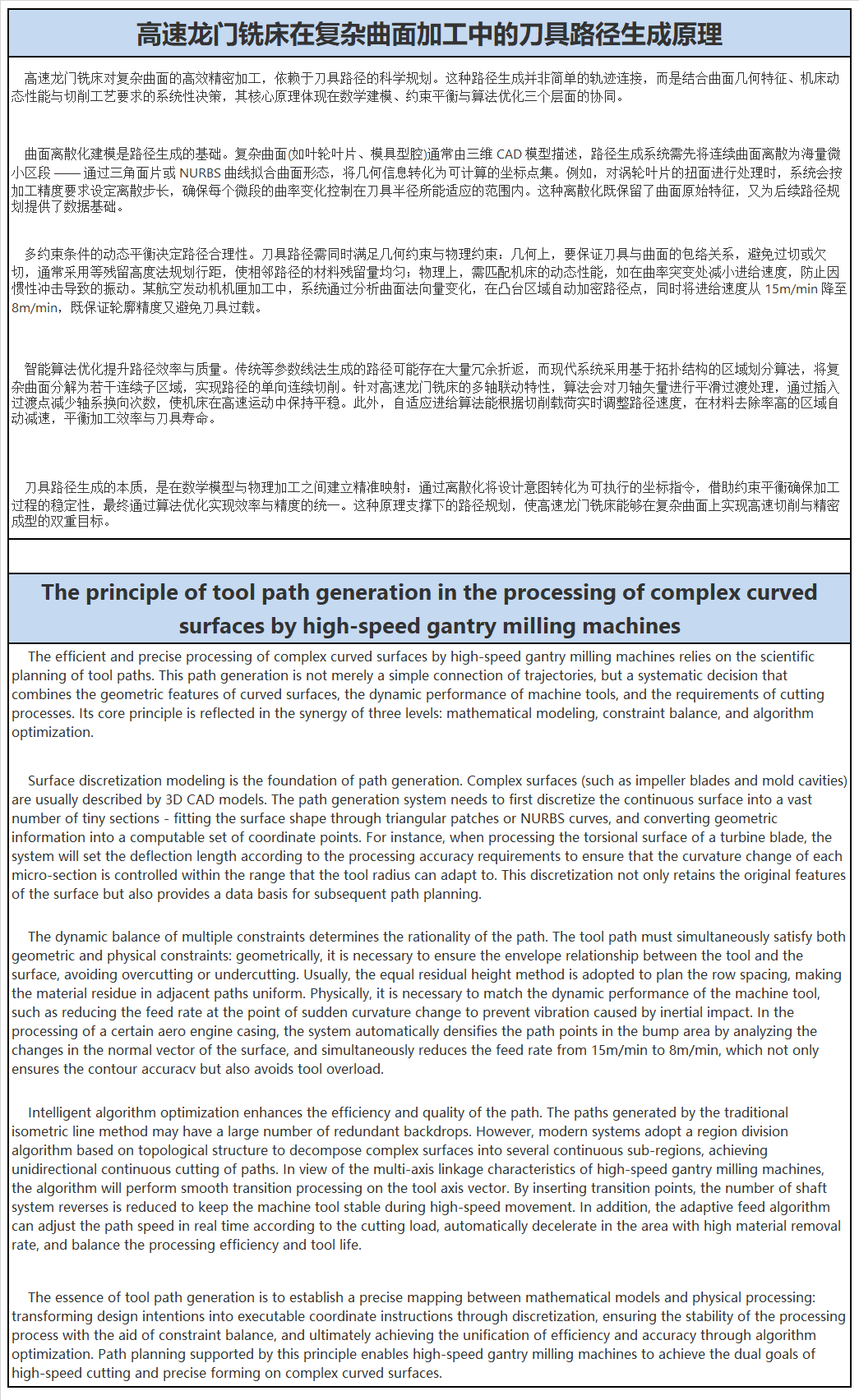

霸刀分享-高速龙门铣床在复杂曲面加工中的刀具路径生成原理
高速龙门铣床对复杂曲面的高效精密加工，依赖于刀具路径的科学规划。这种路径生成并非简单的轨迹连接，而是结合曲面几何特征、机床动态性能与切削工艺要求的系统性决策，其核心原理体现在数学建模、约束平衡与算法优化三个层面的协同。
曲面离散化建模是路径生成的基础。复杂曲面(如叶轮叶片、模具型腔)通常由三维 CAD 模型描述，路径生成系统需先将连续曲面离散为海量微小区段 —— 通过三角面片或 NURBS 曲线拟合曲面形态，将几何信息转化为可计算的坐标点集。例如，对涡轮叶片的扭面进行处理时，系统会按加工精度要求设定离散步长，确保每个微段的曲率变化控制在刀具半径所能适应的范围内。这种离散化既保留了曲面原始特征，又为后续路径规划提供了数据基础。
多约束条件的动态平衡决定路径合理性。刀具路径需同时满足几何约束与物理约束：几何上，要保证刀具与曲面的包络关系，避免过切或欠切，通常采用等残留高度法规划行距，使相邻路径的材料残留量均匀；物理上，需匹配机床的动态性能，如在曲率突变处减小进给速度，防止因惯性冲击导致的振动。某航空发动机机匣加工中，系统通过分析曲面法向量变化，在凸台区域自动加密路径点，同时将进给速度从 15m/min 降至 8m/min，既保证轮廓精度又避免刀具过载。
智能算法优化提升路径效率与质量。传统等参数线法生成的路径可能存在大量冗余折返，而现代系统采用基于拓扑结构的区域划分算法，将复杂曲面分解为若干连续子区域，实现路径的单向连续切削。针对高速龙门铣床的多轴联动特性，算法会对刀轴矢量进行平滑过渡处理，通过插入过渡点减少轴系换向次数，使机床在高速运动中保持平稳。此外，自适应进给算法能根据切削载荷实时调整路径速度，在材料去除率高的区域自动减速，平衡加工效率与刀具寿命。
刀具路径生成的本质，是在数学模型与物理加工之间建立精准映射：通过离散化将设计意图转化为可执行的坐标指令，借助约束平衡确保加工过程的稳定性，最终通过算法优化实现效率与精度的统一。这种原理支撑下的路径规划，使高速龙门铣床能够在复杂曲面上实现高速切削与精密成型的双重目标。
The principle of tool path generation in the processing of complex curved surfaces by high-speed gantry milling machines
The efficient and precise processing of complex curved surfaces by high-speed gantry milling machines relies on the scientific planning of tool paths. This path generation is not merely a simple connection of trajectories, but a systematic decision that combines the geometric features of curved surfaces, the dynamic performance of machine tools, and the requirements of cutting processes. Its core principle is reflected in the synergy of three levels: mathematical modeling, constraint balance, and algorithm optimization.
Surface discretization modeling is the foundation of path generation. Complex surfaces (such as impeller blades and mold cavities) are usually described by 3D CAD models. The path generation system needs to first discretize the continuous surface into a vast number of tiny sections - fitting the surface shape through triangular patches or NURBS curves, and converting geometric information into a computable set of coordinate points. For instance, when processing the torsional surface of a turbine blade, the system will set the deflection length according to the processing accuracy requirements to ensure that the curvature change of each micro-section is controlled within the range that the tool radius can adapt to. This discretization not only retains the original features of the surface but also provides a data basis for subsequent path planning.
The dynamic balance of multiple constraints determines the rationality of the path. The tool path must simultaneously satisfy both geometric and physical constraints: geometrically, it is necessary to ensure the envelope relationship between the tool and the surface, avoiding overcutting or undercutting. Usually, the equal residual height method is adopted to plan the row spacing, making the material residue in adjacent paths uniform. Physically, it is necessary to match the dynamic performance of the machine tool, such as reducing the feed rate at the point of sudden curvature change to prevent vibration caused by inertial impact. In the processing of a certain aero engine casing, the system automatically densifies the path points in the bump area by analyzing the changes in the normal vector of the surface, and simultaneously reduces the feed rate from 15m/min to 8m/min, which not only ensures the contour accuracy but also avoids tool overload.
Intelligent algorithm optimization enhances the efficiency and quality of the path. The paths generated by the traditional isometric line method may have a large number of redundant backdrops. However, modern systems adopt a region division algorithm based on topological structure to decompose complex surfaces into several continuous sub-regions, achieving unidirectional continuous cutting of paths. In view of the multi-axis linkage characteristics of high-speed gantry milling machines, the algorithm will perform smooth transition processing on the tool axis vector. By inserting transition points, the number of shaft system reverses is reduced to keep the machine tool stable during high-speed movement. In addition, the adaptive feed algorithm can adjust the path speed in real time according to the cutting load, automatically decelerate in the area with high material removal rate, and balance the processing efficiency and tool life.
The essence of tool path generation is to establish a precise mapping between mathematical models and physical processing: transforming design intentions into executable coordinate instructions through discretization, ensuring the stability of the processing process with the aid of constraint balance, and ultimately achieving the unification of efficiency and accuracy through algorithm optimization. Path planning supported by this principle enables high-speed gantry milling machines to achieve the dual goals of high-speed cutting and precise forming on complex curved surfaces.
